最近工作需要使用C#调用DLL,公司代码不能公开就转载加一些自己的笔记记录一下。使用软件VS2008和VS2017。

1 C#静态调用DLL

1.1 建立VC工程CppDemo,建立的时候选择Win32 Console(dll),选择Dll。

1.2 在DllDemo.cpp文件中添加这些代码。

extern "C" __declspec(dllexport) int Add(int a,int b)
{
     return a+b;
}

1.3 编译工程。

1.4 建立新的C#工程,选择Console应用程序,建立测试程序InteropDemo

1.5 在Program.cs中添加引用:using System.Runtime.InteropServices;

1.6 在pulic class Program添加如下代码:

using System;
using System.Collections.Generic;
using System.Text;
using System.Runtime.InteropServices;   // 用 DllImport 需用此 命名空间

namespace InteropDemo
{
    class Program
    {
        [DllImport("CppDemo.dll", EntryPoint = "Add", ExactSpelling = false, CallingConvention = CallingConvention.Cdecl)]
        public static extern int Add(int a, int b); //DllImport请参照MSDN

        static void Main(string[] args)
        {
            Console.WriteLine(Add(1, 2));
            Console.Read();
        }
    }
}

2 C#动态调用DLL

在第一节中,讲了静态调用C++动态链接,由于Dll路径的限制,使用的不是很方便,C#中我们经常通过配置动态的调用托管Dll,例如常用的一些设计模式:Abstract Factory, Provider, Strategy模式等等,那么是不是也可以这样动态调用C++动态链接呢?只要您还记得在C++中,通过LoadLibrary, GetProcess, FreeLibrary这几个函数是可以动态调用动态链接的(它们包含在kernel32.dll中),那么问题迎刃而解了,下面我们一步一步实验

2.1 将kernel32中的几个方法封装成本地调用类NativeMethod

using System;
using System.Collections.Generic;
using System.Text;
using System.Runtime.InteropServices;

namespace InteropDemo
{
    public static class NativeMethod
    {
        [DllImport("kernel32.dll", EntryPoint = "LoadLibrary")]
        public static extern int LoadLibrary(
            [MarshalAs(UnmanagedType.LPStr)] string lpLibFileName);

        [DllImport("kernel32.dll", EntryPoint = "GetProcAddress")]
        public static extern IntPtr GetProcAddress(int hModule,
            [MarshalAs(UnmanagedType.LPStr)] string lpProcName);

        [DllImport("kernel32.dll", EntryPoint = "FreeLibrary")]
        public static extern bool FreeLibrary(int hModule);
    }
}

2.2 使用NativeMethod类动态读取C++Dll,获得函数指针,并且将指针封装成C#中的委托。

原因很简单,C#中已经不能使用指针了,如下:

            int hModule = NativeMethod.LoadLibrary(@"c:"CppDemo.dll");

            IntPtr intPtr = NativeMethod.GetProcAddress(hModule, "Add");

详细请参见代码 :

using System;
using System.Collections.Generic;
using System.Text;
using System.Runtime.InteropServices;

namespace InteropDemo
{
    class Program
    {
        //[DllImport("CppDemo.dll", EntryPoint = "Add", ExactSpelling = false, CallingConvention = CallingConvention.Cdecl)]
        //public static extern int Add(int a, int b); //DllImport请参照MSDN


        static void Main(string[] args)
        {
            //1. 动态加载C++ Dll
            int hModule = NativeMethod.LoadLibrary(@"c:CppDemo.dll");
            if (hModule == 0) return;

            //2. 读取函数指针
            IntPtr intPtr = NativeMethod.GetProcAddress(hModule, "Add");

            //3. 将函数指针封装成委托
            Add addFunction = (Add)Marshal.GetDelegateForFunctionPointer(intPtr, typeof(Add));

            //4. 测试
            Console.WriteLine(addFunction(1, 2));
            Console.Read();
        }

        /// <summary>
        /// 函数指针
        /// </summary>
        /// <param name="a"></param>
        /// <param name="b"></param>
        /// <returns></returns>
        delegate int Add(int a, int b);

    }
}

3 注意事项:

3.1 使用静态调用时必须将DLL文件和相关配置文件放于C#可执行文件同一目录,否则会报错;

3.2 在C#中使用DllImport必须添加 using System.Runtime.InteropServices;

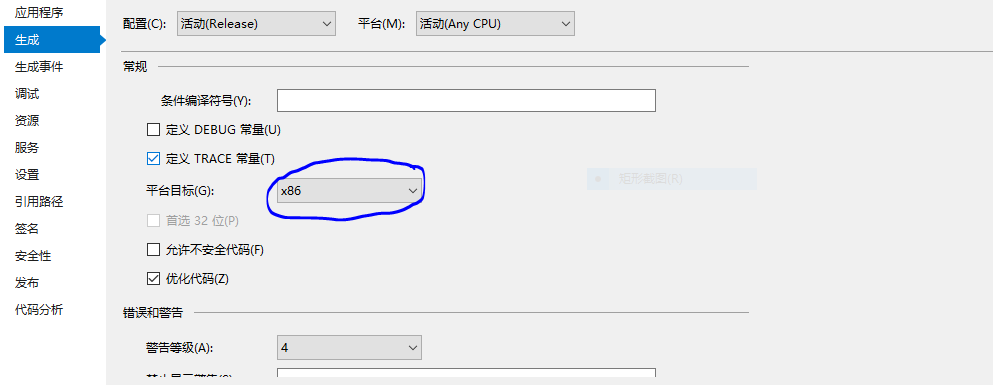

3.3 C#调用DLL时需要将 Properties中平台目标 改为和生成DLL中平台一致。(一般生成dll都是Win32,所以平台目标要改为X86。)

4 数据类型问题

因为在C#中部使用非安全是没有指针数据类型,而一般使用C或C++制作的DLL,DLL中函数的参数列表会有指针类型,调用是就必须要解决或了解这一部分知识——互操作数。
