按钮盒 Button Boxes

按钮盒(Button Boxes)可以很方便地快速布置一组按钮。它有水平和垂直两种样式。你可以用以下函数创建水平或垂直按钮盒：

//创建 水平排列 的一组按钮box控件:
GtkWidget *gtk_hbutton_box_new( void );

//创建 垂直排列 的一组按钮box控件:
GtkWidget *gtk_vbutton_box_new( void );

将按钮添加到按钮盒中可以用下面这个通常的函数：

gtk_container_add (GTK_CONTAINER (button_box), child_widget);

示例

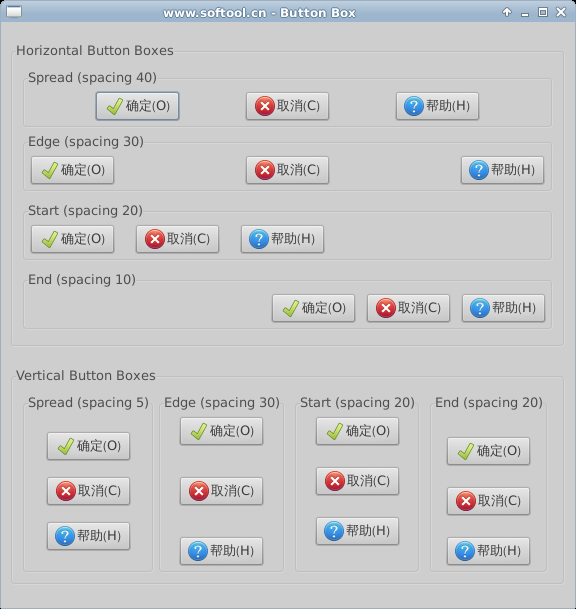

效果

源码

下面的示例演示了按钮盒的不同布局设置。

#include <gtk/gtk.h>

/* 用指定的参数创建一个按钮盒 */
GtkWidget *create_bbox( gint  horizontal,
                        char *title,
                        gint  spacing,
                        gint  child_w,
                        gint  child_h,
                        gint  layout )
{
    GtkWidget *frame;
    GtkWidget *bbox;
    GtkWidget *button;

    //创建一个标题为 title 的框架组件:
    frame = gtk_frame_new (title);

    //水平:
    if (horizontal)
    {
        bbox = gtk_hbutton_box_new ();
    }
    //垂直:
    else
    {
        bbox = gtk_vbutton_box_new ();
    }

    gtk_container_set_border_width (GTK_CONTAINER (bbox), 5);
    gtk_container_add (GTK_CONTAINER (frame), bbox);

    /* 设置按钮盒的外观 */
    gtk_button_box_set_layout (GTK_BUTTON_BOX (bbox), layout);
    gtk_box_set_spacing (GTK_BOX (bbox), spacing);
    /*gtk_button_box_set_child_size (GTK_BUTTON_BOX (bbox), child_w, child_h);*/

    button = gtk_button_new_from_stock (GTK_STOCK_OK);
    gtk_container_add (GTK_CONTAINER (bbox), button);

    button = gtk_button_new_from_stock (GTK_STOCK_CANCEL);
    gtk_container_add (GTK_CONTAINER (bbox), button);

    button = gtk_button_new_from_stock (GTK_STOCK_HELP);
    gtk_container_add (GTK_CONTAINER (bbox), button);

    return frame;
}

int main( int   argc,
          char *argv[] )
{
    static GtkWidget* window = NULL;
    GtkWidget *main_vbox;
    GtkWidget *vbox;
    GtkWidget *hbox;
    GtkWidget *frame_horz;
    GtkWidget *frame_vert;

    /* 初始化 */
    gtk_init (&argc, &argv);

    window = gtk_window_new (GTK_WINDOW_TOPLEVEL);
    gtk_window_set_title (GTK_WINDOW (window), "www.softool.cn - Button Box");
    g_signal_connect (G_OBJECT (window), "destroy",
                        G_CALLBACK (gtk_main_quit),
                        NULL);
    gtk_container_set_border_width (GTK_CONTAINER (window), 10);

    //
    main_vbox = gtk_vbox_new (FALSE, 0);
    gtk_container_add (GTK_CONTAINER (window), main_vbox);

    frame_horz = gtk_frame_new ("Horizontal Button Boxes");
    gtk_box_pack_start (GTK_BOX (main_vbox), frame_horz, TRUE, TRUE, 10);

    vbox = gtk_vbox_new (FALSE, 0);
    gtk_container_set_border_width (GTK_CONTAINER (vbox), 10);
    gtk_container_add (GTK_CONTAINER (frame_horz), vbox);

    gtk_box_pack_start (GTK_BOX (vbox),
                            create_bbox (TRUE, "Spread (spacing 40)", 40, 85, 20, GTK_BUTTONBOX_SPREAD),
                            TRUE, TRUE, 0);

    gtk_box_pack_start (GTK_BOX (vbox),
                            create_bbox (TRUE, "Edge (spacing 30)", 30, 85, 20, GTK_BUTTONBOX_EDGE),
                            TRUE, TRUE, 5);

    gtk_box_pack_start (GTK_BOX (vbox),
                            create_bbox (TRUE, "Start (spacing 20)", 20, 85, 20, GTK_BUTTONBOX_START),
                            TRUE, TRUE, 5);

    gtk_box_pack_start (GTK_BOX (vbox),
                            create_bbox (TRUE, "End (spacing 10)", 10, 85, 20, GTK_BUTTONBOX_END),
                            TRUE, TRUE, 5);

    frame_vert = gtk_frame_new ("Vertical Button Boxes");
    gtk_box_pack_start (GTK_BOX (main_vbox), frame_vert, TRUE, TRUE, 10);

    hbox = gtk_hbox_new (FALSE, 0);
    gtk_container_set_border_width (GTK_CONTAINER (hbox), 10);
    gtk_container_add (GTK_CONTAINER (frame_vert), hbox);

    gtk_box_pack_start (GTK_BOX (hbox),
                            create_bbox (FALSE, "Spread (spacing 5)", 5, 85, 20, GTK_BUTTONBOX_SPREAD),
                            TRUE, TRUE, 0);

    gtk_box_pack_start (GTK_BOX (hbox),
                            create_bbox (FALSE, "Edge (spacing 30)", 30, 85, 20, GTK_BUTTONBOX_EDGE),
                            TRUE, TRUE, 5);

    gtk_box_pack_start (GTK_BOX (hbox),
                            create_bbox (FALSE, "Start (spacing 20)", 20, 85, 20, GTK_BUTTONBOX_START),
                            TRUE, TRUE, 5);

    gtk_box_pack_start (GTK_BOX (hbox),
                            create_bbox (FALSE, "End (spacing 20)", 20, 85, 20, GTK_BUTTONBOX_END),
                            TRUE, TRUE, 5);

    gtk_widget_show_all (window);

    /* 进入事件循环 */
    gtk_main ();

    return 0;
}
